Hand Pumps

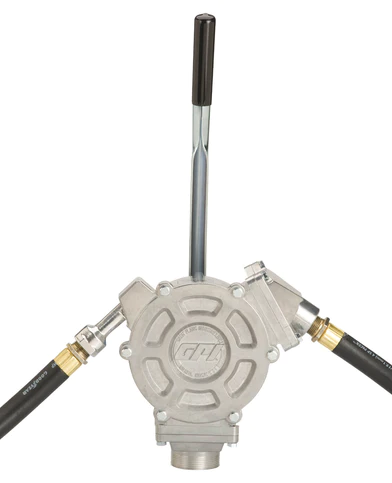

HP-100 Series

The GPI HP-100 Fluid Transfer pump is a premium fuel piston hand pump that is reliable and versatile, delivering the highest flow rate in the industry year after year. It is a single solution for multiple pumping applications, suitable for pumping fuels and motor oils. The HP-100 features a Dual-Flo® handle providing the user with the flexibility of operating the pump at two flow rates. A setting of 1/2-gallon per stroke cycle provides faster high-capacity flow for fuels. A 1/4-gallon setting allows for easier pumping of thicker fluids, such as motor oil, even in cold temperature conditions (-25°F / -32°C).
Includes:
  • up to 50Gal(189L) /100 strokes hand pump
  • 8ft 3/4" dispensing hose
  • 15" to 40" telescopic suction pipe
  • Metal nozzle

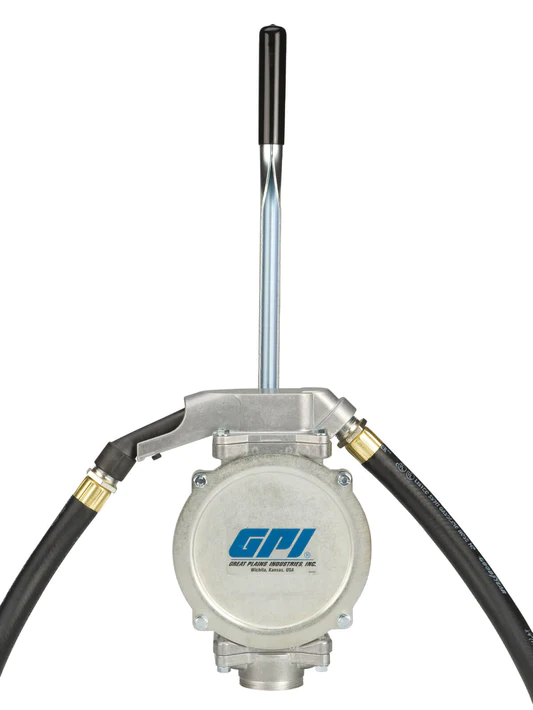

DP-20 Series

The GPI DP-20 fluid transfer hand pump is a lever-action diaphragm pump that delivers up to 20 gallons per 100 strokes and provides exceptional performance year after year. Its maintenance-free design reduces the number of internal moving parts which greatly reduces wear and binding seen with conventional hand pumps. The DP-20 hand pump is compatible with a wide variety of petroleum products. UL Listed model available.
Includes:
  • up to 20Gal(76L) /100 strokes hand pump
  • 8ft 3/4" dispensing hose
  • 15" to 40" telescopic suction pipe
  • Plastic nozzle

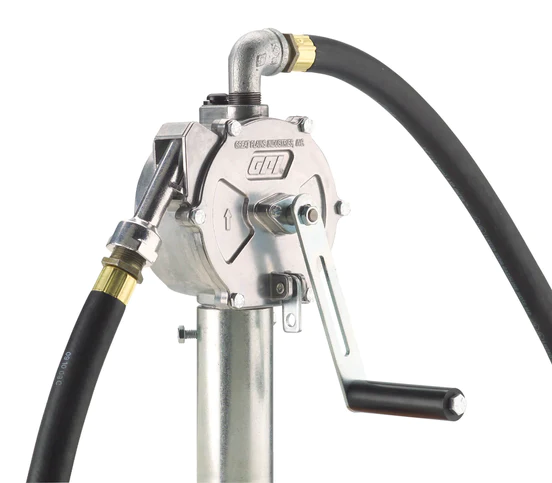

RP-10 Series

The GPI RP-10 fluid transfer hand pump is a rotary action pump designed for direct mounting on portable tanks, drums, or barrels for the transfer of gasoline, diesel fuel, kerosene, oil (up to 30W), and hydraulic fluid. This hand pump delivers up to 10 gallons (38 Litres) per 100 revolutions. The RP-10 is the perfect pump for construction, agriculture, and other industries where maximum versatility and portability are important.
  • up to 10Gal(38L) /100 revolutions hand pump
  • 8ft 3/4" dispensing hose
  • 15" to 40" telescopic suction pipe
  • Metal spout
Includes:

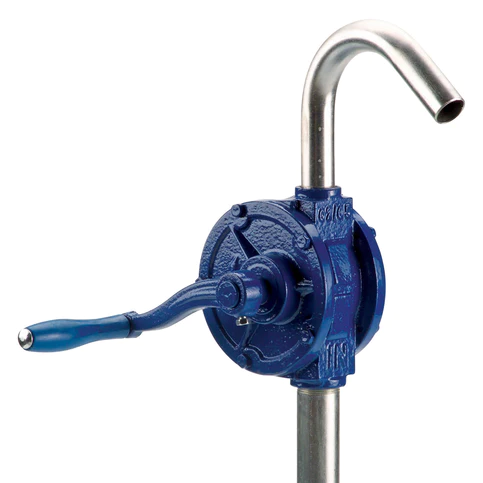

RP-5 Series

The GPI RP-5 fluid transfer pump is a light-duty rotary action pump designed to deliver up to 8 gallons (30 Litres) per 90 revolutions for use with diesel, petroleum-based fluids, kerosene, light oil, and hydraulic fluids. This hand-operated transfer pump is not compatible with gasoline.
Includes:
  • up to 8Gal(30L) /90 revolutions hand pump
  • 13" to 40" 3-piece suction pipe
  • Metal spout
If there are any products that you are looking for that you cannot find, please give us a call and let us help!
